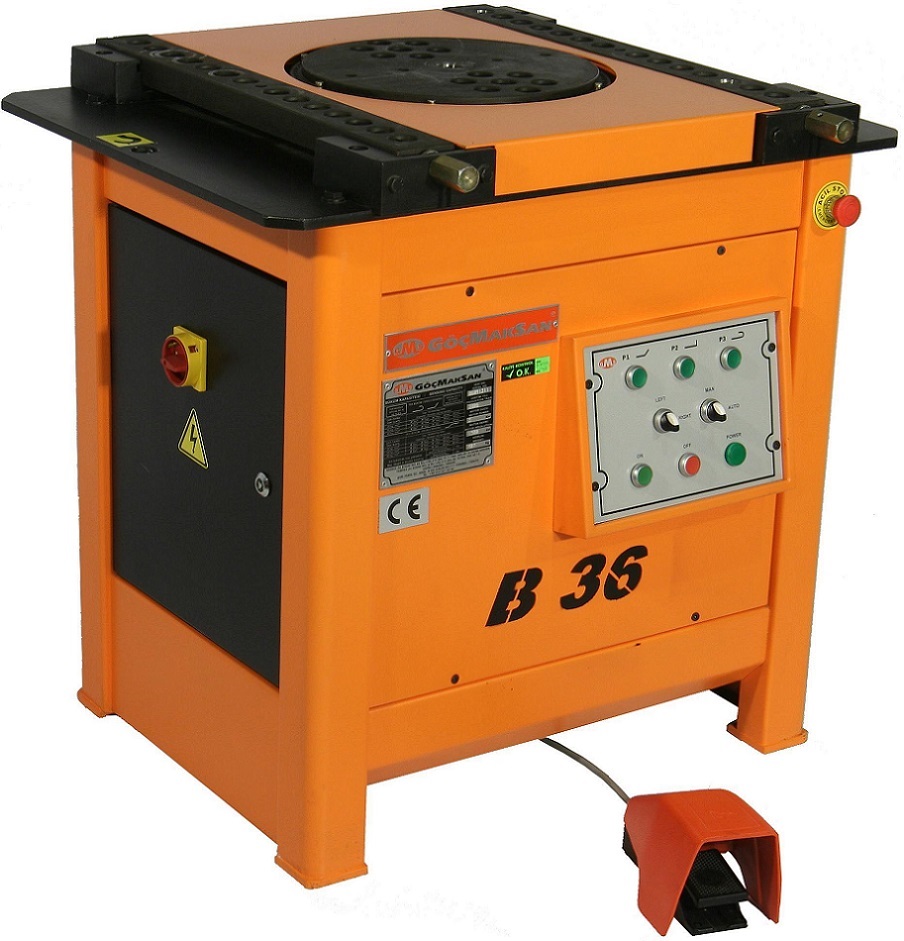

About Our B36 Rebar Bender

B36 Rebar Bender, vergalhões bender

The B36 Rebar Bender is very operator friendly and extremely easy to use.

Rebar Bending is achieved via mechanical power transfer. The control system consists of an electrical automation system. This system enables the operator to make bending angle adjustments. The machine can make bending angle to the left or the right. Bending can be controlled manually or automativally and three bending angles can be set at any one point in time.

B36 Rebar Bender Specifications
 Width  81 cm
 Length  92 cm
 Height  85 cm
 Motor Power  3 kw
 Operating Volts  380V
 Weight  407Kgs


Bending Capacity< of the B36 Rebar Bender
Steel Strength
Steel Strength
Steel Strength
Bars
45 kg/mm²
65 kg/mm²
85 kg/mm²
1
Ø 32
Ø 25
Ø 25
2
Ø 20
Ø 16
Ø 16


Standard Equipment supplied with the B36 Rebar Bender
 5 Bending Rollers
 5 Bending Pins
 1 Strirrup Pin
 1 Straight Pin
 1 Stirrup Bending Retainer
 1 Foot Pedal
 1 Adjustment Spanner
